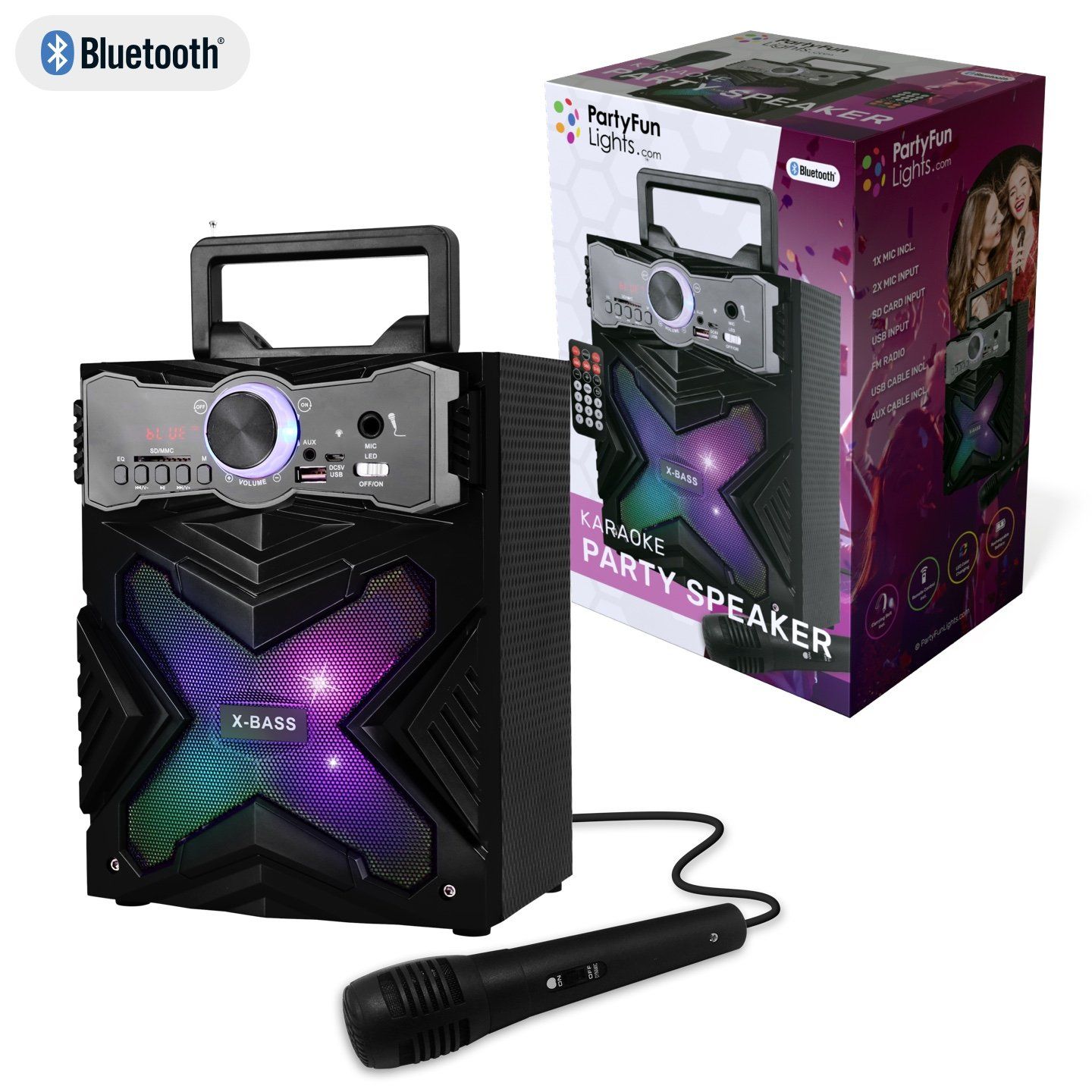

Karaoke Party Speaker
8717278.86436.5

User Manual

Instructions

All the instructions should be read carefully before operating and follow the instructions.

The speaker should be kept away from heat sources such as radiators, and do not expose to moist air or water
The speaker should be connected to a power supply only of the type described in the operating instructions
Do not attempt to repair the speaker if you are not professional.
When cleaning the unit, only use a soft cloth and do not use harsh abrasives or chemicalsto clean, as it will damage the surface finishing.
The power switch should be off when left unused for a long period of time.

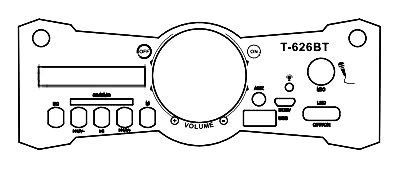

OFF / ON

“OFF” means Power off, “ON” means Power on, speaker will enter into the play mode when knob is turned to on position
Insert the USB cable to “LINE IN” DC 5.0V and the other USB cable to recharge the built in battery

Play / Pause / Mode

Insert the audio equipment to the “LINE IN” slot using the USB plug and press Mode to switch to AUX function and the speaker can play music from mobile phone, MP3, computer and other audios.
MP3 Function
SD card / USB: insert SD card to “SD/MMC”, it will play music from SD card. Insert USB, it will play music from USB.
FM: Press “Mode” for long time, it enters into the FM mode after light turns red.

Mode / Play

Mode ⏯️
MP3 Mode: Short press to play / pause function
FM MODE: Short press to search and save channel function
Insert Audio: press shortly to pause
Short press, you can choose SD / USB / FM / AUX function
FM- / ⏮️
Short press ⏮️, it will play previous song, long press to turn the volume down; FM mode, short press to save channel, long press to turn the volume down;
Audio mode has no function.
FM+ / ⏭
MP3 MODE, short press ⏭ to play the NEXT song, long press the turn the volume up. FM mode, short press it’s save channel; long press to turn the volume up.
Audio mode has no function.

Remote Control

“POWER” key: press the “Power” key, it will turn the power off; press one more time, it will turn the power on.
“MODE” key: Press the “Mode” key, you can choose SD / USB / FM / AUX mode.
“NEXT” key: in MP3 mode, short press to go to the next song; long press to fast forward. In FM mode, short press to save channel, long press to search FM channel.
“PREVIOUS” key: in MP3 mode, short press to PREVIOUS song; long press to fast backward.
“VOLUME - ” key: Press “VOLUME-“ for volume down, and “VOLUME+” for volume up
“EQ” key: Press it, you can choose different mode (Jazz, Rock, Bass, Normal, and Class).
“USB / SD” key: Choose the USB or SD function.
Repeat Function: press “Repeat” key for one time to single song repeat, while press one more time, for all songs repeat.
“0-9 number” key:

Wireless Function

Press “M” button to select wireless function, then pair the device to your mobile phone. It should show the Bluetooth name “PartyFunLights” on your mobile phone.

Specs

Packing list
