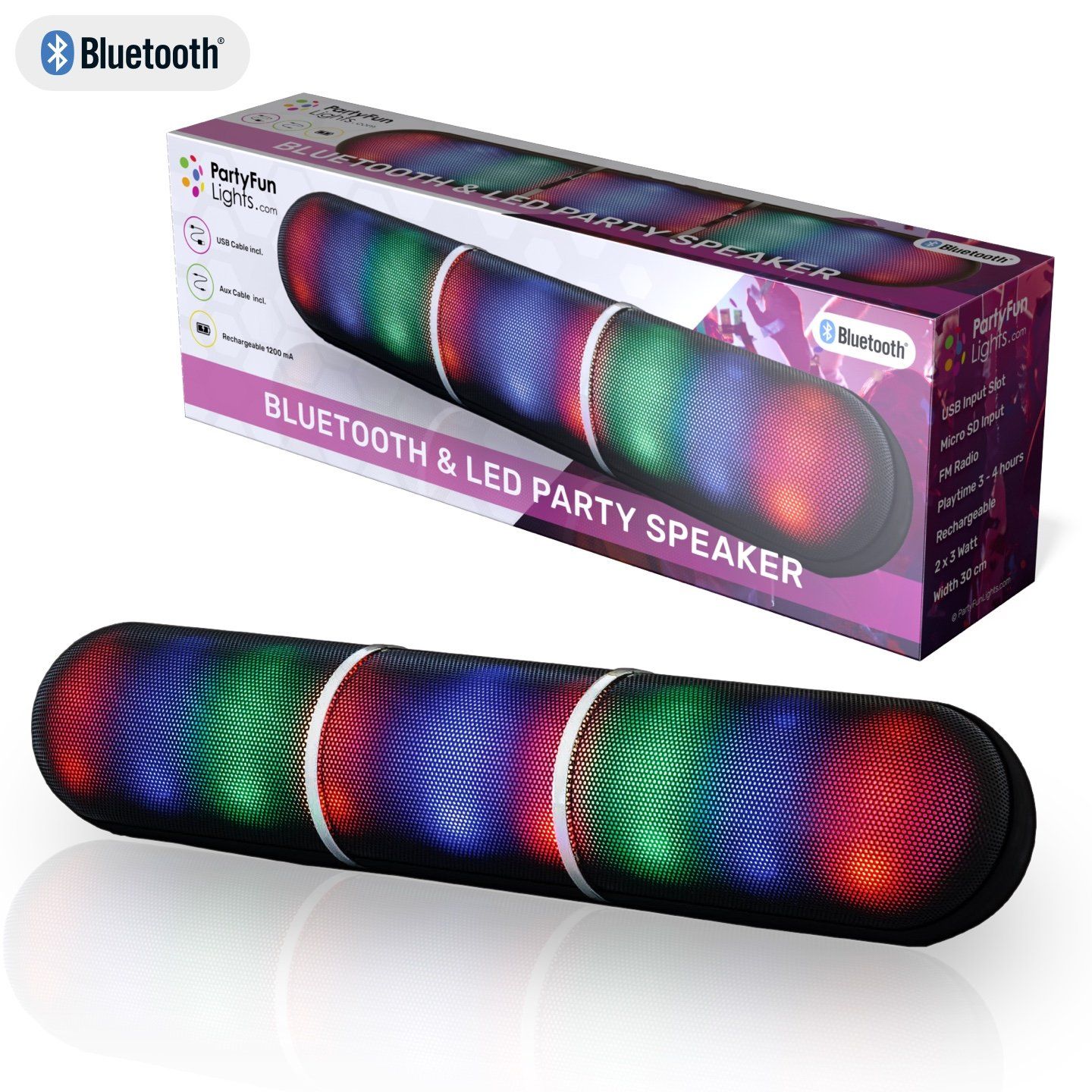

Bluetooth & LED Party Speaker 8717278.86269

User Manual

Getting started
Please read all instructions carefully & retain for future use
  • Remove the unit from the box.
  • Remove any packaging from the product.
  • Please retain all packaging until you have checked and counted all the parts and the contents against the parts list.

Package Contents
  • 1 * Bluetooth Portable Speaker
  • 1 * USB Charging Cable
  • 1 * 3.5mm AUX Cable
  • 1 * Instruction manual built in battery

Features
  1. Bluetooth Speaker
  2. Built-in LED Flashing Lights
  3. Built-in Rechargeable Battery
  4. Built-in controls support play, pause, forward/backward track and volume
  5. Play music through Bluetooth, AUX, TF Card & USB ( TF card & USB flash drive not included)
  6. Built-in FM radio

Important safety information
  1. Read all instructions before using this product.
  2. Do not leave this product unattended while connected to the power supply.
  3. Do not use this apparatus near water.
  4. Do not use if unit has been dropped or damaged in any way.
  5. Repairs to electrical equipment should only be performed by qualified personnel. Improper repairs may place user at serious risk.
  6. Place unit on sound, even surface, free of vibrations and away from sources of heat.
  7. Do not use with wet hands, and clean only with dry cloth.
  8. Do not block any ventilation openings. Follow all instructions as manufacturer’s instructions.
  9. Do not use this unit for anything other than its intended use.
  10. Keep this product out of reach of children.
  11. This product is not a toy.
  12. Do not play music at excessive levels especially near children, as damage to hearing may occur.
  13. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where the exit from the apparatus.

Description of parts
  1. Skip Forward / Increase Volume
  2. Skip Backward / Decrease Volume
  3. Mode Button
  4. MFB (play/pause/phone/LED on/off) Button Multi-function Button Pause/Resume playblack LED Lights on/off
  5. AUX-Input
  6. TF Card Slot
  7. USB Slot
  8. ON/OFF Switch
  9. USB Charging Port DC5V USB Charge port
  10. LED Light Indicator

Instructions for use

Charging the speaker
  1. Please use the original charging cable to charge .
  2. Red LED on while charging, the light will turn off when the units is fully charged.
Turn on/of the speaker
  1. To Turn “ON”, slide the “ON/OFF” switch to the ON Position.
  2. To Turn “OFF”, slide the “ON/OFF” switch to the OFF Position.
Switch the speaker to bluetooth paring mode
  1. Turn on the speaker.
  2. You will hear the audible tone and the LED Lights will illuminate. The speaker is now in pairing mode.
Paring your device with bluetooth speaker
Your Bluetooth Speaker can wirelessly stream audio from any Bluetooth enabled device within 27-33 Feet. Simply follow the below steps.
  1. Turn ON the speaker.
  2. You will hear the audible tone and the LED light will illuminate. The speaker is now in pairing mode.
  3. Turn on the Bluetooth on your Mobile Phone or Tablet or Computer.
  4. It will search for various devices.
  5. The pairing name of the Bluetooth Speaker is “PartyFunLights”, pair it with this device.
  6. If required, enter the password ‘0000’ to confirm to finalise pairing.
  7. Once paired successfully, you should hear an indication tone.
  8. If you fail to pair it within the time frame or you want to pair it with a new device please follow the steps outlined above again.
 Select your favorite song on the Bluetooth device. Music will now stream through bluetooth speaker.

(Note: Speaker will automatically pair with previously paired devices)

Talking using the bluetooth speaker
Please ensure that your cell phone is paired with the Bluetooth Speaker to use the below functions.
Listening to music wirelessly
  • Increase volume - Long press on the ⏭ button to increase the volume.
  • Decrease volume - Long press on the ⏮ button to decrease the volume.
  • Pause - Short press ▶️/ ⏸ once to pause the music.
  • Play - Short press ▶️/⏸ once resume playback .
  • Previous Track - Short press the ⏮ button to the previous track.
  • Next Track - Short press the ⏭ button to the next track.
(Note: A tone indication will alert you when the volume has reached maximum level.)

Aux-in Mode
Connect devices without bluetooth by using the AUX connection. A 3.5mm stereo mini patch cable is required to make this connection.
  1. Turn on the unit.
  2. Press the MODE button to select the AUX input.
  3. Select your favorite song on your source player and begin playback.
Using USB/TF Card function
Install a USB drive or Mirco SD card and music will automatically begin playback.
  1. Turn on the unit.
  2. Insert TF card or USB flash drive into the TF Card Slot or USB Slot. Music will be automatically begin playback.
  3. Short press ⏭ or ⏮ button to switch between your tracks.
  4. Short press ▶️/⏸ button to pause or pause or resume playback.
Note: If you insert a TF Card or USB drive while in Bluetooth mode, the unit will disconnect from Bluetooth and begin playback in USB or TF card mode. Press button to return back to BT. TF Card/USB Flash Drive not included.

FM Radio
  1. Turn ON the unit.
  2. Press the MODE button until you hear the FM radio input.
  3. Short press ▶️/⏸ button for searching and recording the preset radio stations with frequency range of 87.5-108MHz.
  4.  Short press ⏭ or ⏮ button to listen to the next and previous present radio stations.
  5. Long press the ⏭ or ⏮ button to adjust the volume up or down.
  6. While playing the FM audio, plug in the AUX cable(included) into the AUX IN port for better reception. This cable serves as an antenna and enhances FM stations near you.
Tips
  1. Long press the Mode button to switch different inputs on the unit. The inputs are as follows: Bluetooth / USB-TF / FM Radio / AUX.
  2. When the unit is not in use, please turn OFF the unit to save the battery life.
  3. Do not over charge the unit. Every charge should not exceed 4 hours.
Do's and Don'ts
  1. Do not play music at excessive levels as damage to hearing and/or equipment may result.
  2. Do not use in wet or in damp surroundings.
Specification
  • Bluetooth version 5.0 Speaker Output 2 x 3W
  • FM Frequency 87.5 – 108MHz
  • Unit Size 290*190*120mm
  • Unit Weight 433.5g
  • Play time About 1.5-2 hours (at 80% volume)
  • Charge Voltage DC5V (USB)
  • Bluetooth Range 27 - 33 Feet
  • Built-In Rechargeable Battery 3.7V / 1200mAh
(Note: Battery life & charging time may vary based on usage & types of devices used.)

Troubleshooting guide
  • Low sound level - Adjust source (tablet, mobile phone etc.) volume or charge battery
  • Audio distorted - Charge battery
  • No sound at all - Turn on source/Turn on speaker/Adjust source volume/Play media from source
