86531

EAN - 8717278.86531.7

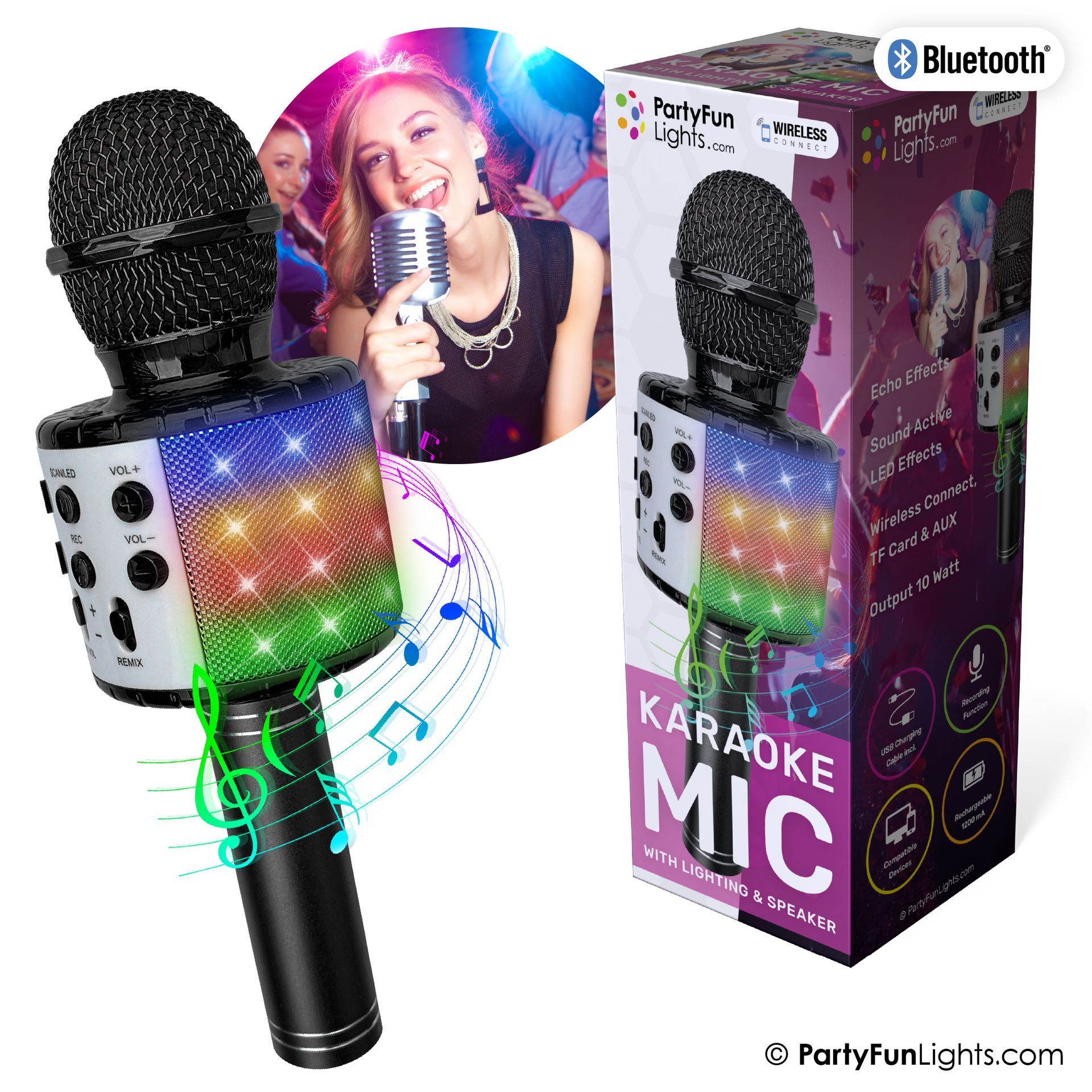

User Manual - Karaoke Microphone

Introduction

To make correct use of the functions and to know the system’s connections and usage, please read this user manual carefully before using the product. Keep this manual in a safe place for future reference.


Button Functions

(I) Press: Switch mode

(I) Hold: ON/OFF

🔼   Press: Previous song

🔽   Press: Next song

⏯ Press: Play/pause

⏯ Hold: Automatic search

🎤⟳ Press: Mic on/off

🎤⟳ Hold: Replay (TF card)

+ Press: Increase volume

- Press: Decrease volume

REC: Press: REC for 3 seconds to change voice sound effect


Wireless Karaoke

  1. Hold (I) button to start the product.
  2. Enable wireless on smartphone. Connect to mic, when connected a sound prompts.
  3. Adjust the volume of and echo according to liking.


Selfie function

  1. Press the (I) button to switch from wireless mode to selfie mode;
  2. Enable wireless in the mobile phone, search “shutter”, click connect.
  3. Open the photo interface of the mobile phone, press  🔼   or  🔽   button to take photos.


Note: Requires 4.2.2 or higher version for Androld or 6.0 or higher version for iOS. It does not support other versions. It does not work with a mobile phone which has an independent and physical photograph button.


Specifications

Output Power: 5W

Frequency Range: 100HZ~10KHZ TDH < 1%

Max Sound Level: > 115DB 1KHZ

Battery Capacity: 1200mAh

Charging Power: DC5V

Power Supply: Built-in 18650 Li-battery
