User Manual - Party Speaker

Getting started

To make correct use of the functions and get to know the product’s connections and usage, please read this user manual carefully before using the product. Keep this manual in a safe place for future reference.

Introduction

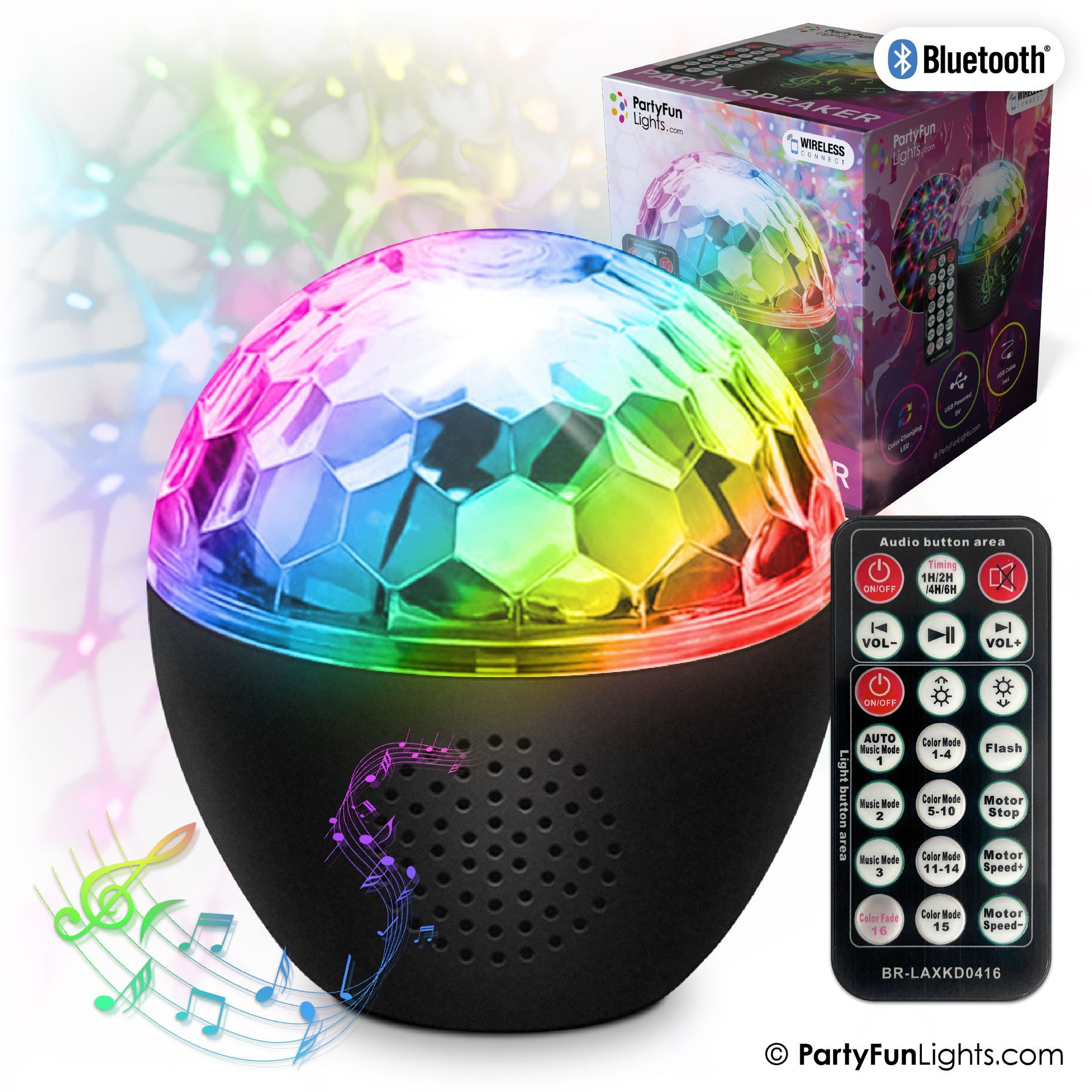

This wireless speaker will allow you to listen to your music wirelessly from your mobile phone, tablet or other Bluetooth enabled device. It delivers powerful and clear sound.

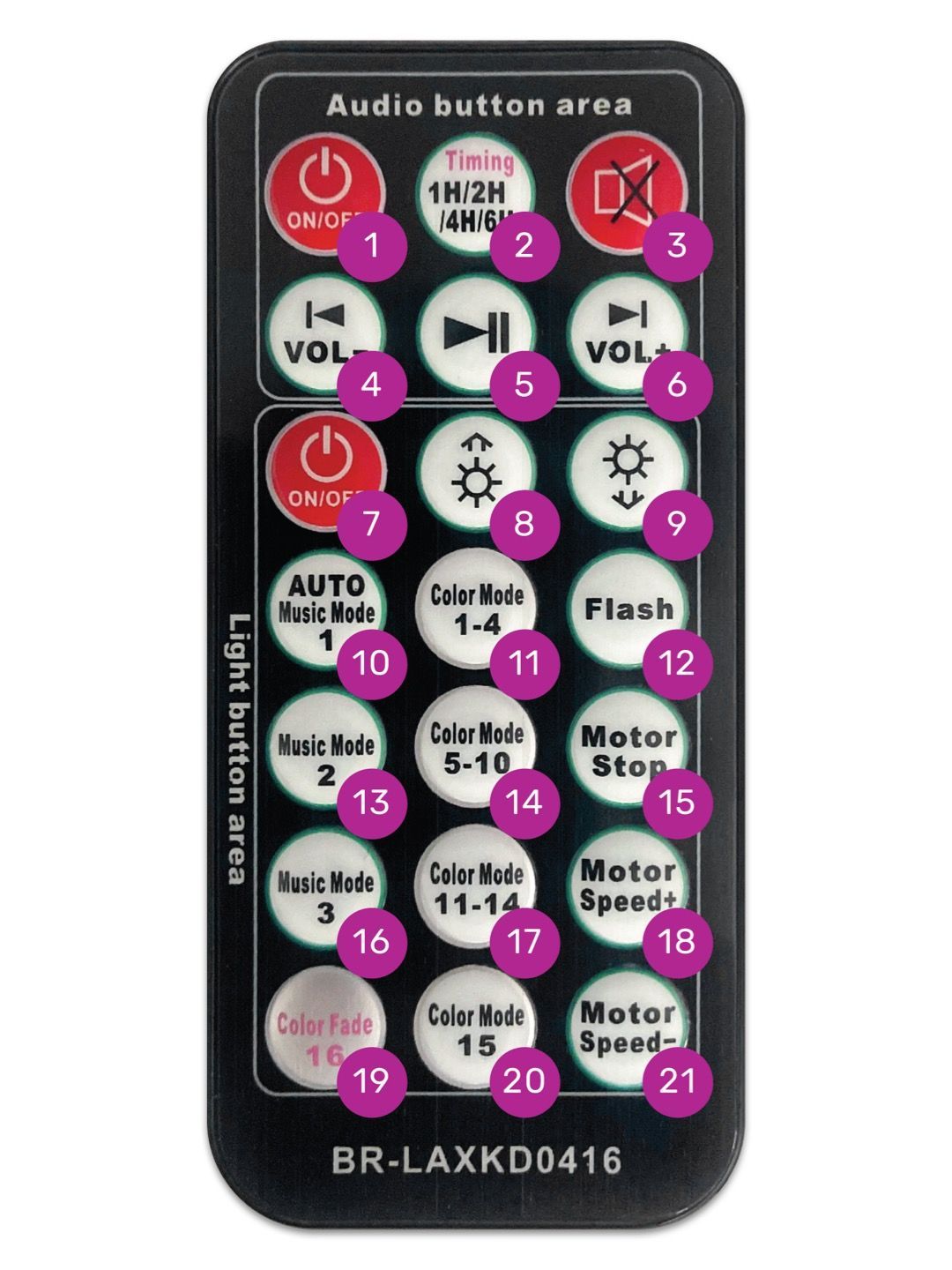

Remote Control

1. Audio ON/OFF
2. Sleeping timer 1h, 2h, 4h or 6h
3. Sound ON/OFF
4. Short press: previous song
   Long press: volume down
5. PLAY/PAUSE
6. Short press: next song
   Long press: volume down
7. Light ON/OFF
8. Increase brightness
9. Decrease brightness
10. Sound active + light
11. Single color:
    Press to switch between red, green, blue, pink light
12. Strobe flash
13. Sound active only
14. Dual color pattern
    Press to switch between combinations of 2 colors
15. Stop pattern movement
16. Sound active with flash light
17. Triple color pattern
    Press to switch between combinations of 3 colors
18. Increase pattern speed
19. Gradual color change
20. Diming pattern of all colors
21. Decrease pattern speed


Specification

• Light Source: 4X1W
• Source Lifetime: Rated - 20,000hrs
• Power Supply DC: 5V USB
• Rating Power: 5W
• Effect: Disco Music Ball
