86360

EAN - 8717278.86360.3

User Manual - Party Speaker

Getting started

To make correct use of the functions and get to know the system’s connections and usage, please read this User Manual carefully before using the product. Keep this manual in a safe place for future reference.


Introduction

This wireless speaker will allow you to listen to your music wirelessly from your mobile phone, tablet or other Bluetooth enabled device. It delivers powerful and clear sound.


Safety Instructions

Read this manual carefully before operating the equipment and keep it for future reference.



  • Do not insert any metal object into the device.
  • Do not expose the device to liquid, moisture or excessive humidity.
  • To avoid a static charge, do not use the device in an extremely dry climate or environment.
  • Do not attempt to repair the device yourself – no user serviceable parts inside.
  • Avoid heavy shocks to the product and do not drop it.
  • The battery (rechargeable built-in battery is factory fitted) should not be exposed to excessive heat such as sunshine and fire.
  • This device is not suitable for children under the age of 3. Children should be instructed on how to use this device and be supervised when using it.

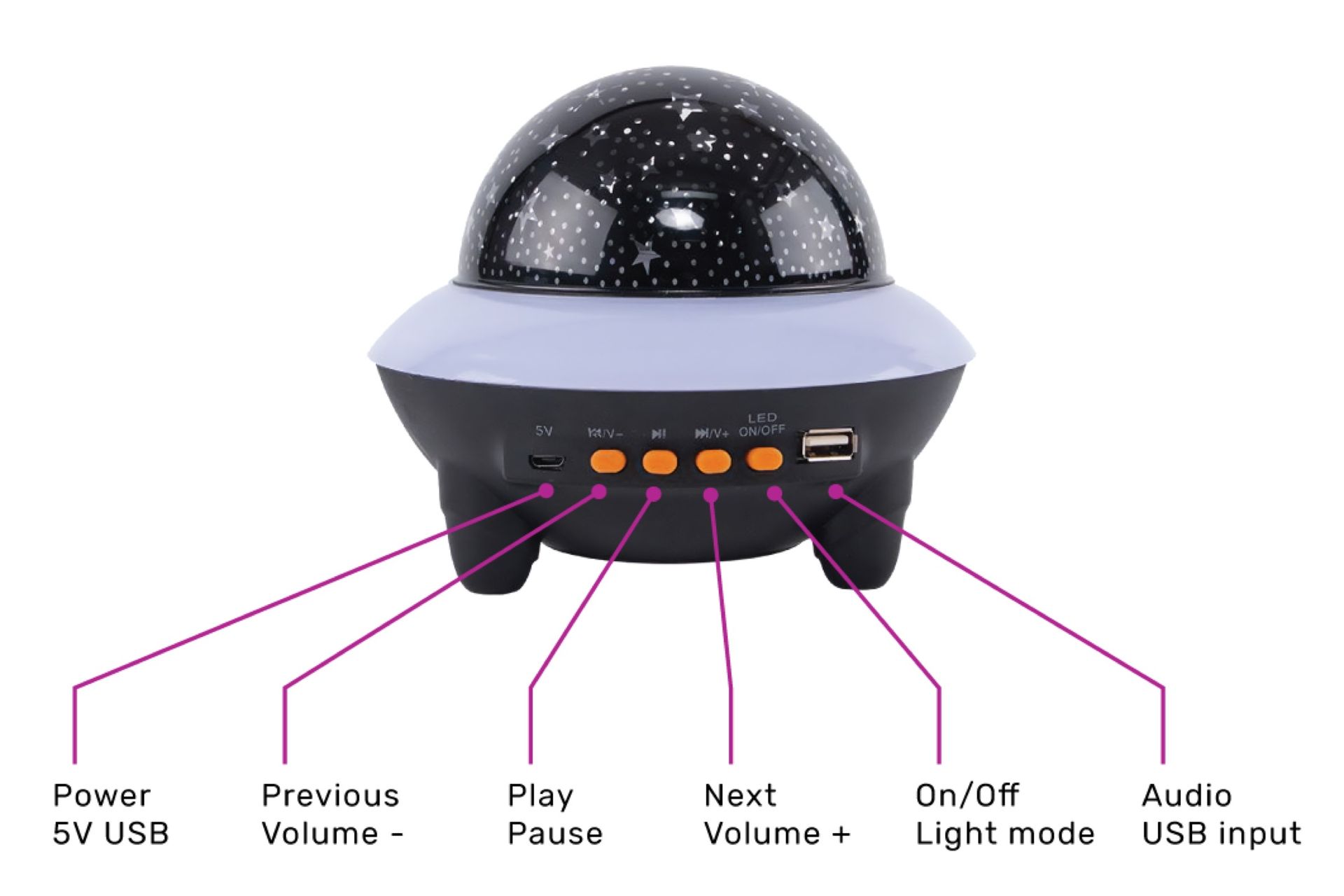

Product Panel & Functions


Remote Control

  • Power on/off - long press LED ON/OFF Button.
  • Change light mode - short press LED ON/OFF Button.
  • After power on, the speaker is set to wireless mode by default.


5V DC Power Input

Use charging cable supplied with this product, or any other phone charging USB cable to charge the battery of the speaker.


USB

Insert a USB flash drive into the slot and any MP3 format music can be played directly.


  • Next song - short press Last song - short press ⏮️
  • Next song - short press ⏮️
  • Decrease volume - long press ⏮️
  • Increase volume - long press  ⏭


Play / Pause

Play/Pause will start/pause music.


Specifications

Product size: H12 * D15 cm

Bluetooth name:  PARTYFUNLIGHTS

Input voltage: DC 5V

Battery: Li 2000mA

Rated power: 10 W

Product material: ABS Plastic & PC

LED light source: 3x1w Red / Green / Blue

LED type: 18pcs x 0.25W RGB Led

Bluetooth speaker: Bluetooth 5.0,

Output: 1x3W Speaker

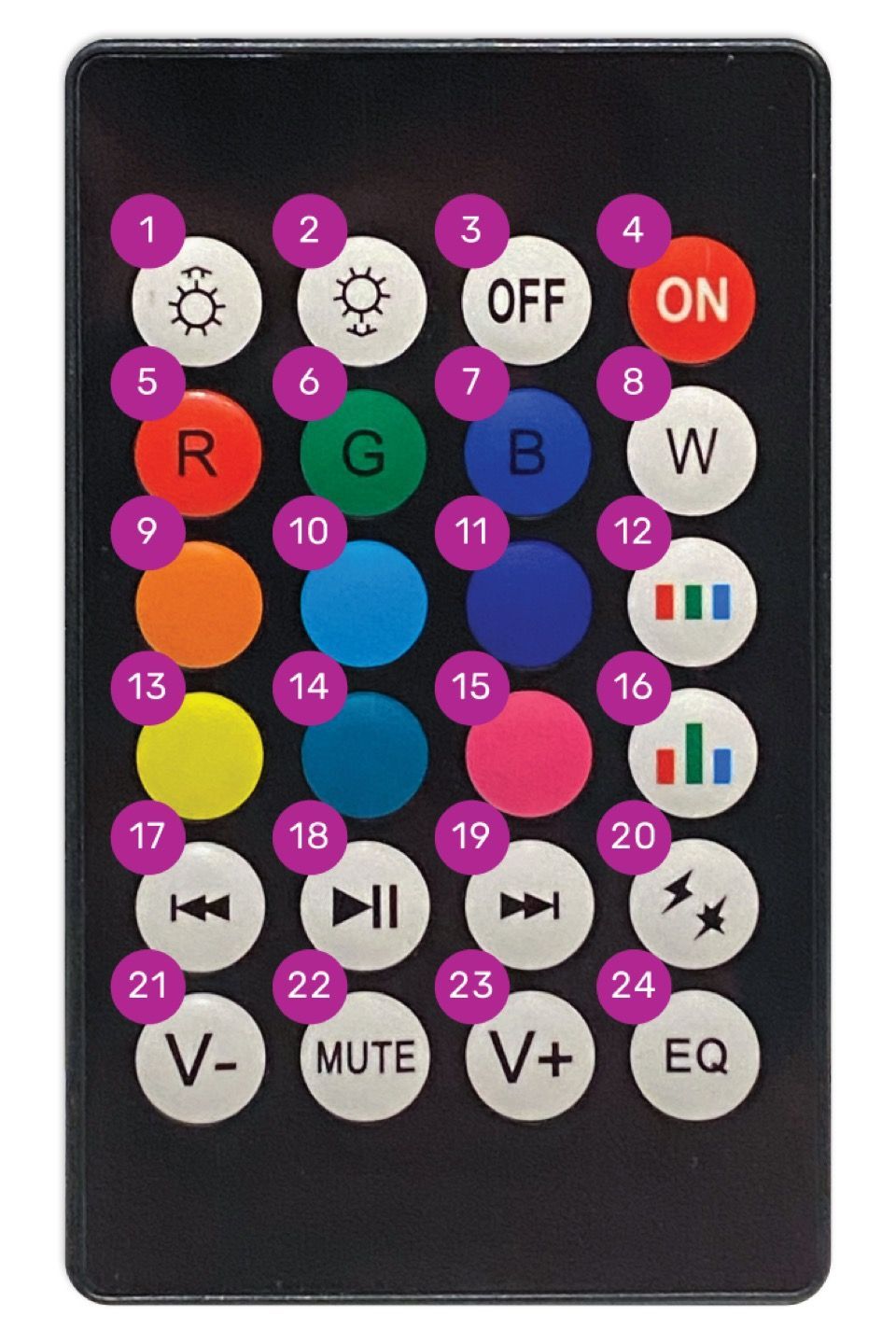

Remote Control Functions


  1. Internal light
  2. Projection light
  3. Power off
  4. Power on
  5. Red light
  6. Green light
  7. Blue light
  8. -
  9. Orange light
  10. Turkois light
  11. Purple light
  12. Quick fading
  13. Yellow light
  14. Soft blue light
  15. Pink light
  16. Soft fading
  17. Previous
  18. Play/Pause
  19. Next
  20. Color patterns
  21. Volume -
  22. Mute
  23. Volume +
  24. Equalizer
