86815

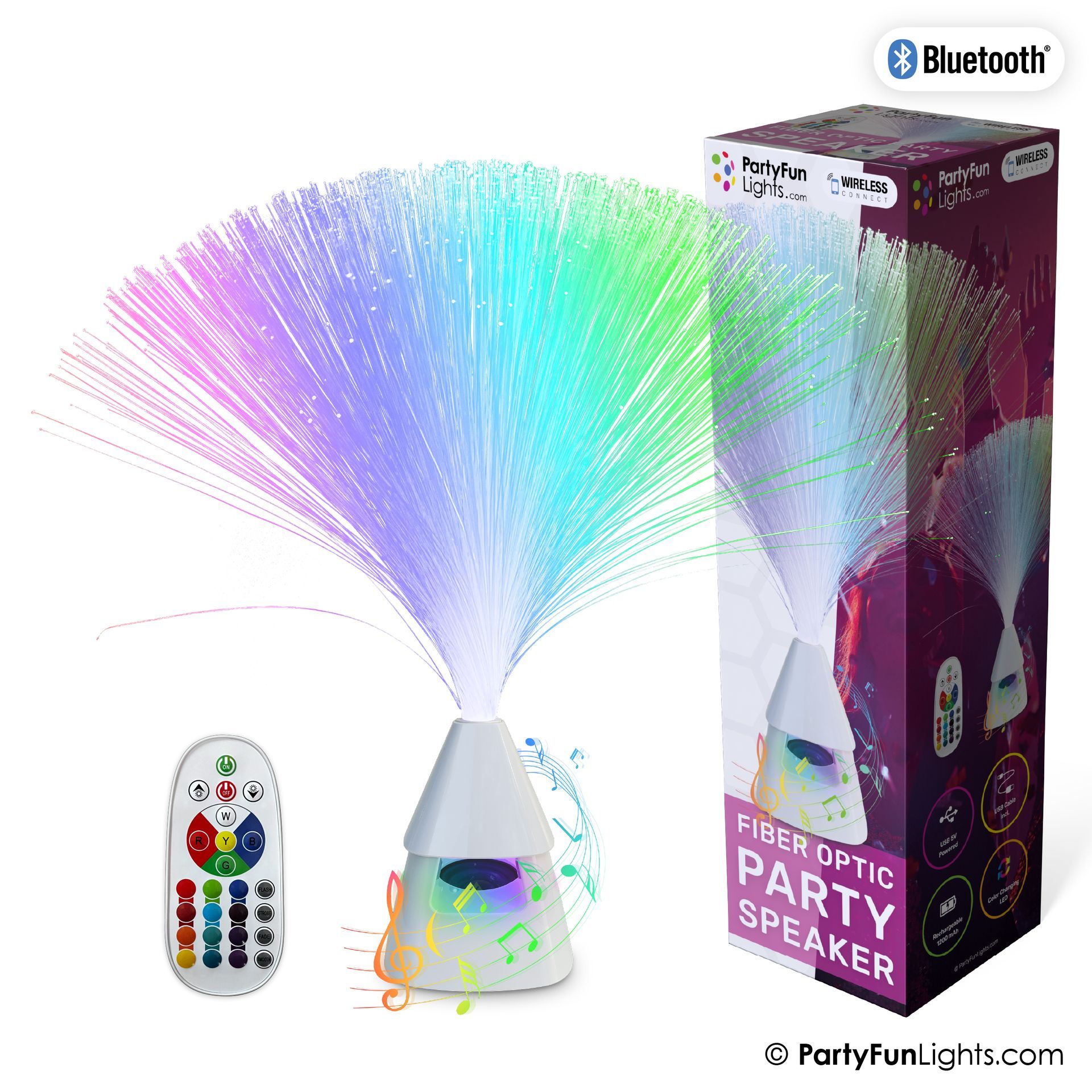

User Manual - Fiber Optic Party Speaker

Introduction

To make correct use of the functions and to know the system’s connections and usage, please read this user manual carefully before using the product. Keep this manual in a safe place for future reference.

Operation Instructions

• Press the switch at the bottom of the speaker. The LED lamp will turn on. A prompt tone (do-do-do-do sound) will sound, which means Bluetooth is ready to pair.
• Go to the Bluetooth settings of your smartphone and search for the device. Another prompt tone (di-do sound) will sound when the speaker is connected.
• Press the switch at the bottom of the speaker again to turn off the lamp and disable Bluetooth.
• Recharge the battery with the USB cable when a low battery warning is given (do-do-do sound). The audio volume and lamp brightness will be weaker when the battery is low.

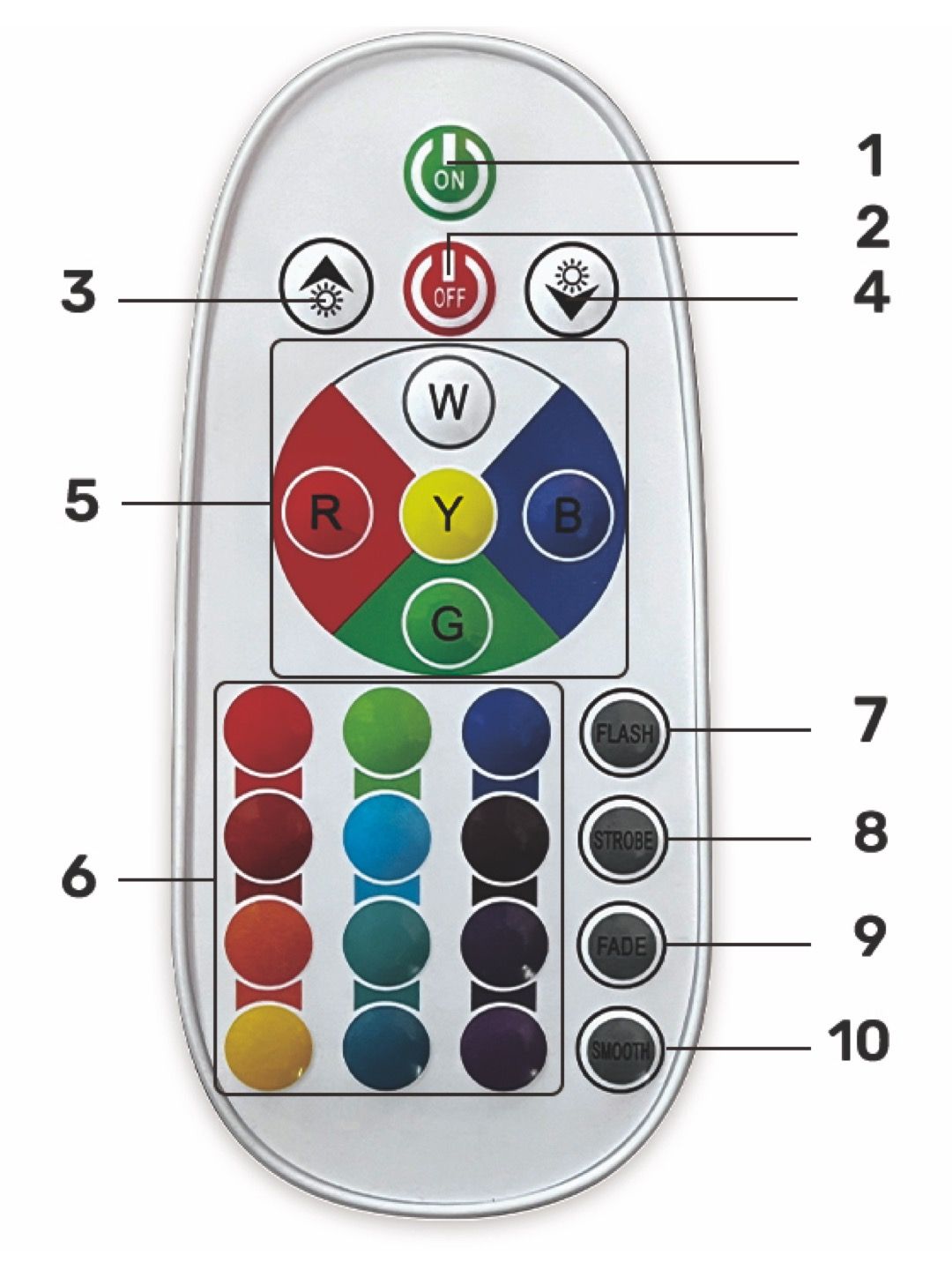

Remote Control

1. On
2. Off
3. Increase light intensity
4. Decrease light intensity
5. RGBW color
6. Mix colors
7. Flash
8. Strobe
9. Fading effect
10. Smooth effect

Battery Indicator

• Battery full: Green light
• Battery low: Red light

Charging Times

• Charging time: 2-3 h
• Operating time: 5-6 h

Specifications

• Frequency band: 2.4 GHz~2.48 GHz
• Frequency range: 150Hz~18KHz
• Battery: 3.7V - 1200mA
• Speaker power: 43W
• Bluetooth name: PartyFunLights
• Bluetooth version: 5.0
• Bluetooth distance: 10 m
