86448 - User Manual

86448

EAN - 8717278.86448.8

User Manual - Karaoke Party Speaker

Getting started

To make correct use of the functions and get to know the system’s connections and usage, please read this User Manual carefully before using the product. Keep this manual in a safe place for future reference.

Introduction

This wireless speaker will allow you to listen to your music wirelessly from your mobile phone, tablet or other Bluetooth enabled device. It delivers powerful and clear sound.

Safety Instructions

Read this manual carefully before operating the equipment and keep it for future reference.

Do not insert any metal object into the device.
Do not expose the device to liquid, moisture or excessive humidity.
To avoid a static charge, do not use the device in an extremely dry climate or environment.
Do not attempt to repair the device yourself – no user serviceable parts inside.
Avoid heavy shocks to the product and do not drop it.
The battery (rechargeable built-in battery is factory fitted) should not be exposed to excessive heat such as sunshine and fire.
This device is not suitable for children under the age of 3. Children should be instructed on how to use this device and be supervised when using it.

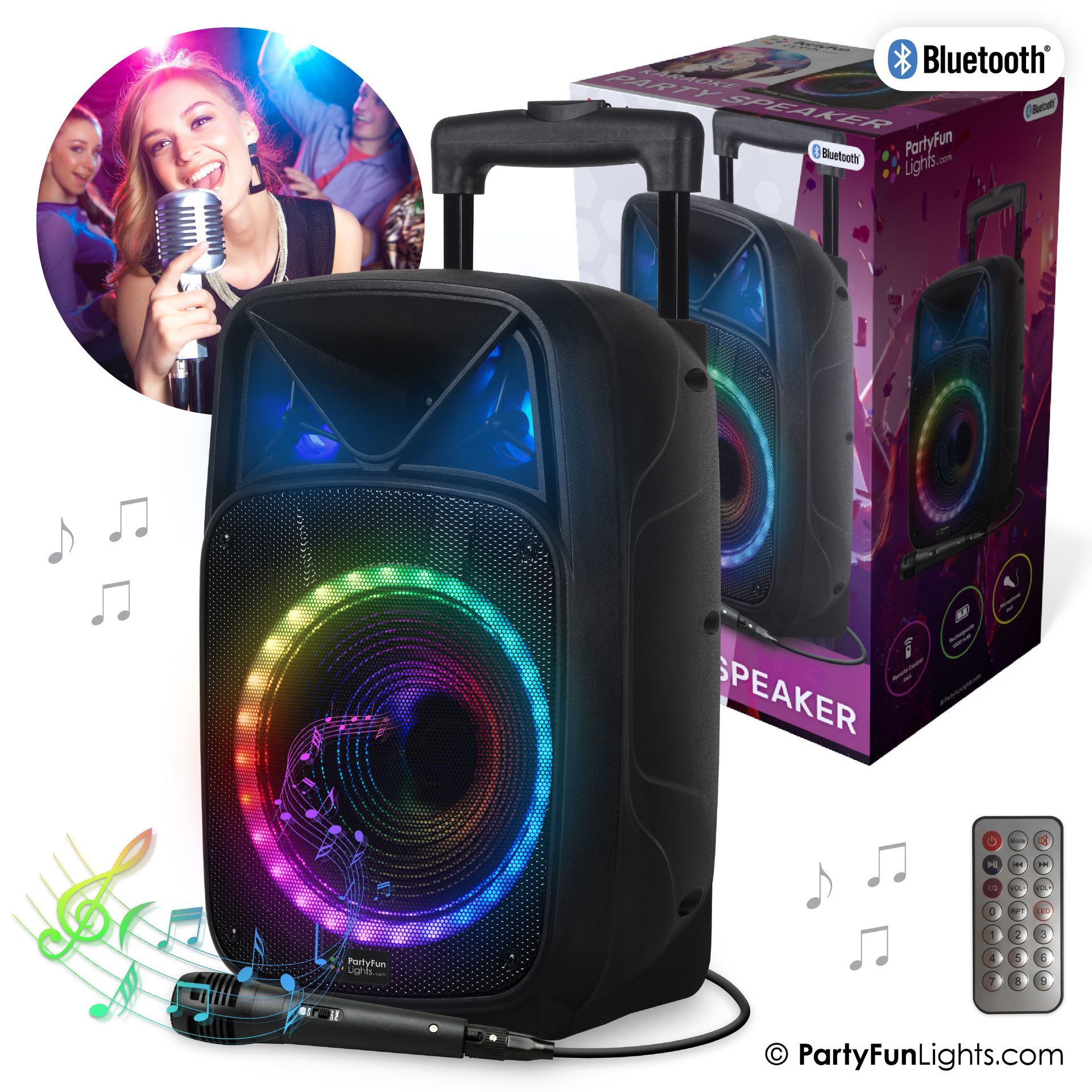

Speaker

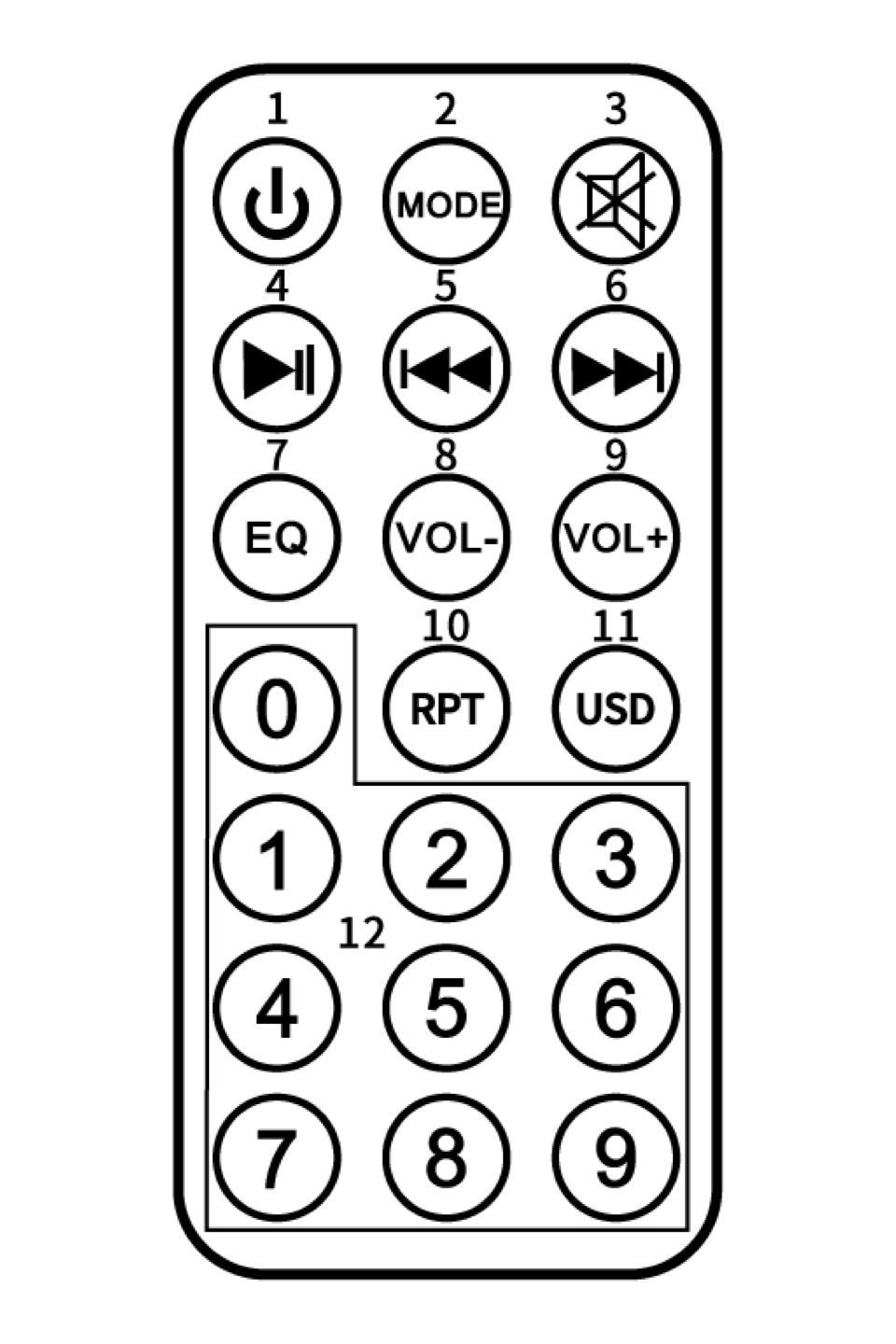

Remote control
Wired microphone
Power cable

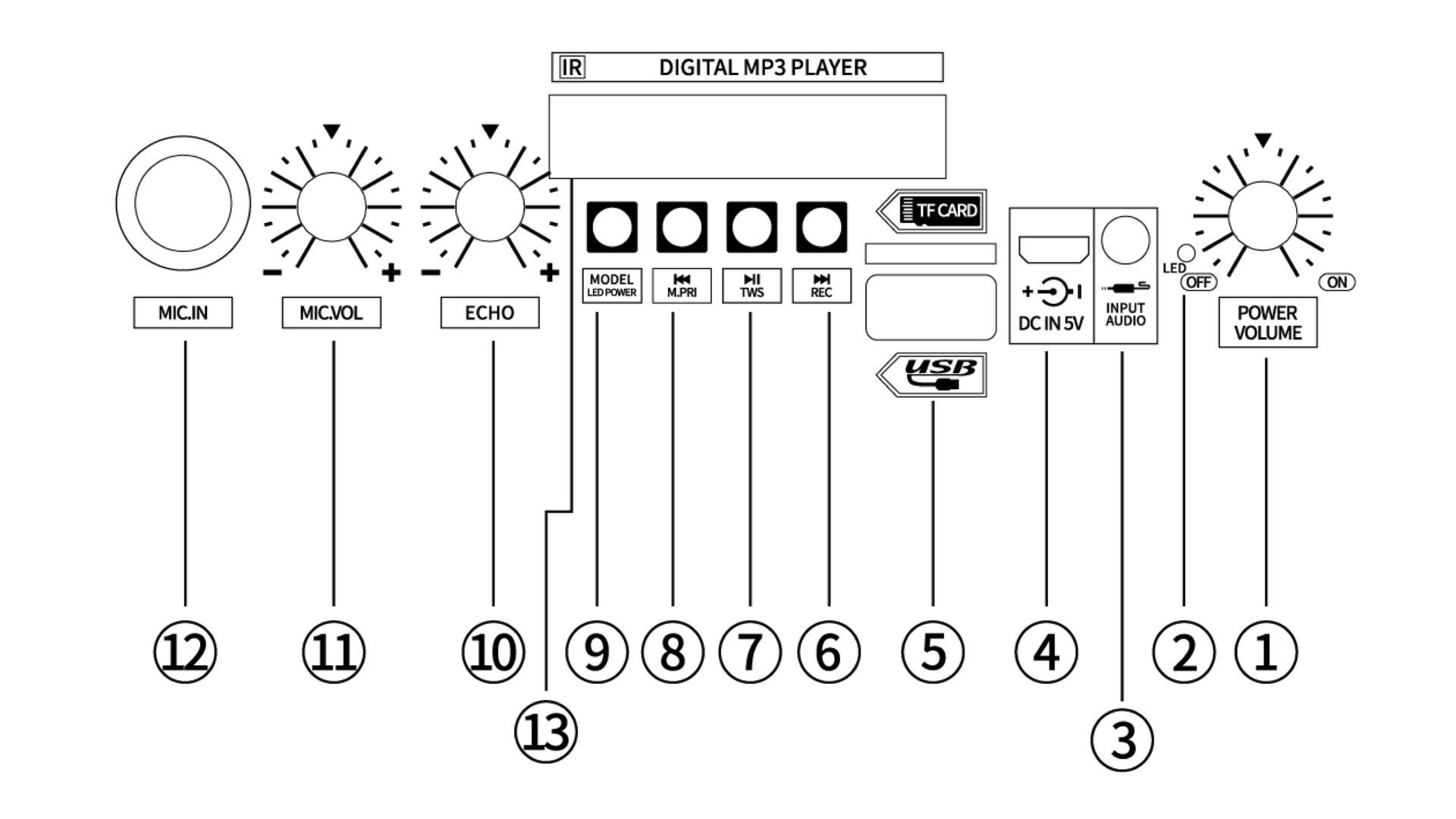

Product Panel & functions

Power / volume
LED
Audio input
Power input 5V DC
USB / TF card
Next
Play / pause
Previous
Mode
Echo
Microphone volume
Microphone input
Digital MP3 player

Battery Charging Instructions

This wireless speaker comes with a built-in rechargeable Lithium-ion battery. Before using it for the first time we recommend you charge the battery fully.

Connect the supplied charging/audio USB cable to the micro USB port on the device.
Connect the other end of the USB cable to a USB port on a PC, Power Bank or AC/DC USB adaptor plug (not supplied). The red LED lights up indicating the battery is being charged. When the battery is fully charged, the LED will turn off.

We recommend that to avoid damage to your battery only charge it when flat.

Wireless Mode

To activate wireless mode:

Turn on the speaker, you will hear a sound that indicates “Connect mode”. To pair the speaker with your device, find the wireless code “PartyFunLights” in your device’s list and pair it. A beeping sound will indicate that the connection is successful. You can then use your device’s controls, speaker’s control panel buttons or the remote control to play the music on your Bluetooth device, e.g. mobile phone.

Radio Mode

To activate FM Radio:

Turn on the speaker, press the “MODE” button until you hear “Radio Mode” and it will enter FM radio, Pressing and holding the ⏯ key will enter automatic search mode and once complete the unit will automatically store all available channels; press the ⏮️ /V- key to select the previous radio channel or the ⏭ /V+ Key for the next radio channel. Alternatively you can use the remote control to do this.

Audio Input Mode

To activate Audio input Mode:

Turn on the speaker, press the ”MODE” button until you hear “Audio Input”, plug the charging/audio cable into the audio in port (micro USB plug) on the speaker and the plug into your device.

You can then use your device’s controls to play back the music.

USB/TF Card Mode

To activate USB/TF card mode:

Files will be automatically played when a TF card or USB Drive is inserted. The device supports any MP3/MP4/MP5 and WMA files. You can use the product’s control panel buttons to operate playback or use the number buttons on the remote control to select your favourite songs.
