86163

User Manual - USB Party Light

Getting started

To make correct use of the functions and get to know the product’s connections and usage, please read this user manual carefully before using the product. Keep this manual in a safe place for future reference.

Introduction

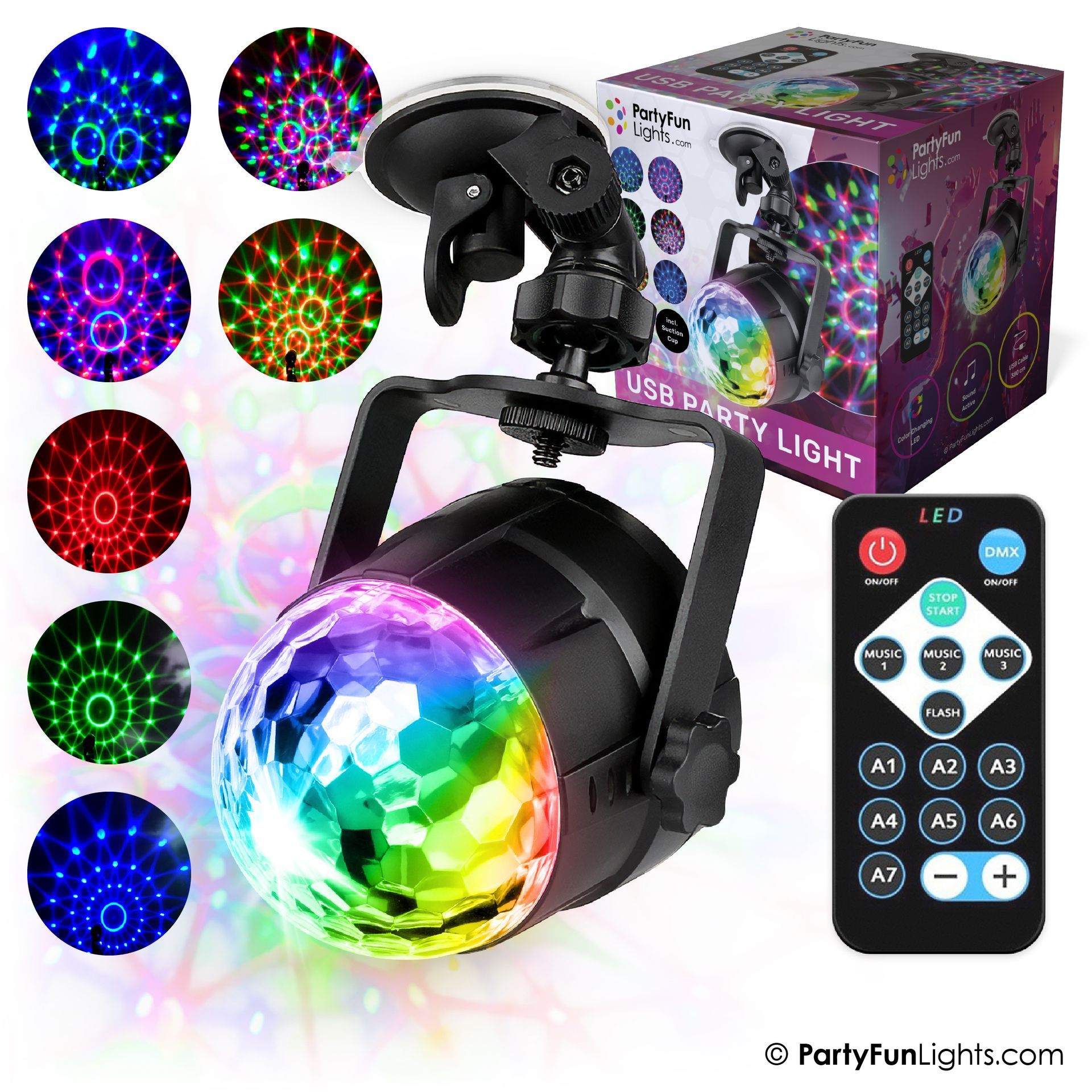

This USB powered party light will allow you to project to project various lighting patterns on surfaces, like walls, ceilings and floors. You can easily attach the light on flat surfaces with the included suction cup.

Features

• Before installation or maintenance, please make sure the product is turned OFF.
• Only use this product in rooms with proper ventilation.
• This product is designed for indoor use. Do not use it outdoors or in a wet environment.
• Don’t look directy in the lighting unit for too long, it may cause eye-discomfort.
• For cleaning use a clear dry cloth.

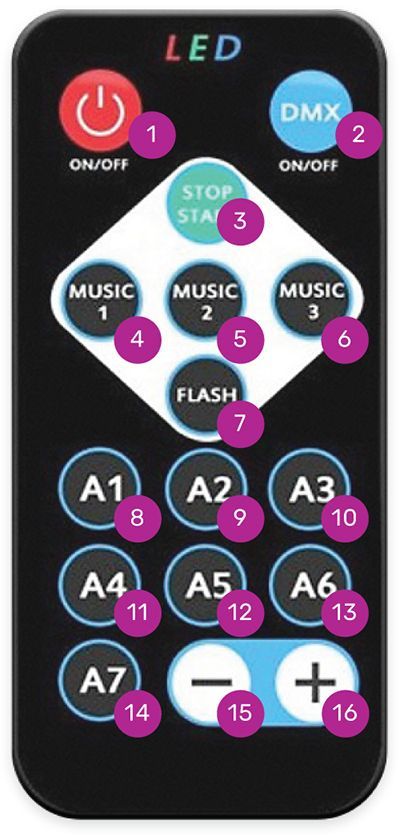

Remote Control

1. Power ON/OFF
2. (No function)
3. Pattern Start/Stop
4. Sound active mode, pattern off
5. Sound active mode, dynamic pattern
6. Sound active mode, strobe pattern
7. Burst mode
8. Red light
9. Green light
10. Blue light
11. Red + green light
12. Blue + green light
13. Red + blue light
14. Red, blue and green alternating light
15. Decrease pattern speed
16. Increase pattern speed

Specifications

• LED source: 3 x 1W

• LED lifetime: Rated - 20000hrs

• Power supply: 5V / 1A

• Rated power: 3W

• Weight: 0.3kg
• Dimensions: 100 x 100 x 115mm
